Summary
Admin users can add custom resource function fields to orders or order lists that will display a filtered concatenated list of transaction details in a single field.
This facilitates being able to see the resources booked in an order without having to open the transaction layout. Areas this can be used include:
- Order list views
- Order detail layouts
- Schedule Book displays
The feature is intended as a direct replacement for ScheduALL's display block function
fields.
Example:
You can configure a function field to display a list of Editors booked in an order.

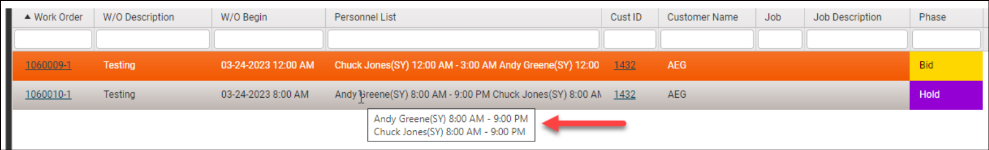

Figure 1- List view with a function field column

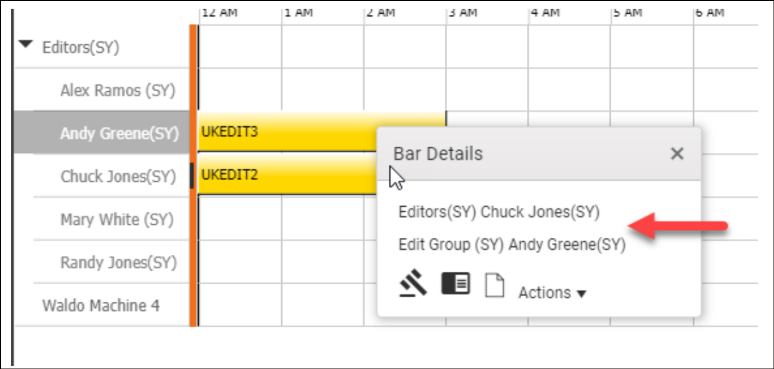

Figure 2 - The function field used in a fly-over from the Schedule Book:
Setup
An initial step is to add the function field properties button to the document customisation layout, as it’s not included by default with 10.4.

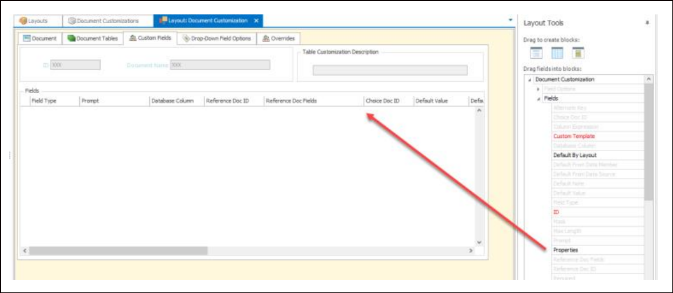

Figure 3 - Add the 'Properties' field to document customisation layout (custom fields list)
Add function fields using document customisation.
Document Customisation allows the user to create a new field of field type ‘Function’. Add a new ‘Function’ field type.

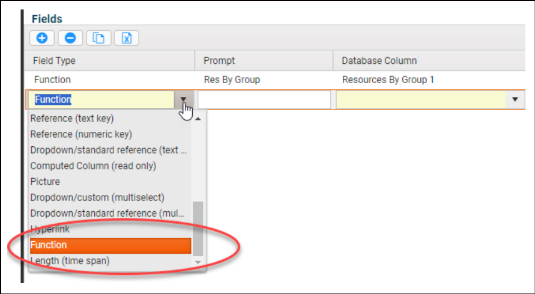

Figure 4 - Select the 'function' field type
You can define up to 10 custom function fields per document for each of the filter methods.
| Filter Method | Description |
| By group | Define a specific group of resources to display. |
| By resource Type | Define a specific resource type to display. |
| By Group/Resource Type | Define both a group and a type to display. |

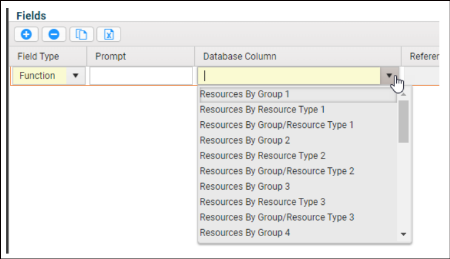

Figure 5 - Database Column Filter method

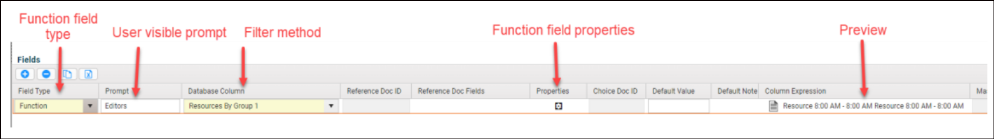

Figure 6 - The columns for function fields
Depending on the filter method selected will determine what fields are displayed on the Properties form. Group or resource type or both.
Optionally you can display the booked resource times next to the resource description, or whether concatenated or separated by a comma or a new line for each resource.
Maximum child transaction levels – Where transactions are booked in a parent-child relationship manner, this determines how far down the relationship levels are to go when determining which resource to display. By default, all child levels are displayed.

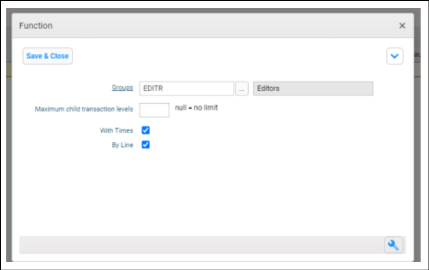

Figure 7 - Function field Properties
Display the function fields.
Using the layout editor in Smart Client, add the function field defined above to the layout. The fields can be added to List or Maintenance Layouts.

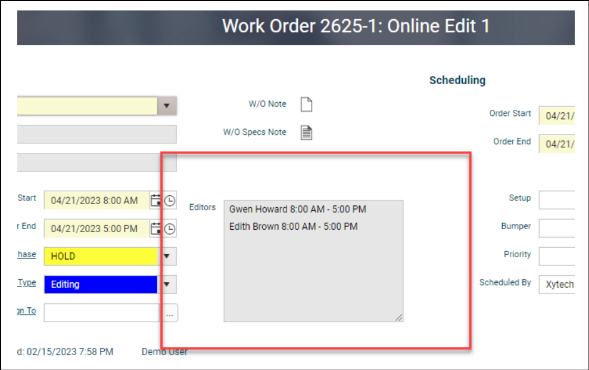

Figure 8 - Function field added to the Work Order layout.

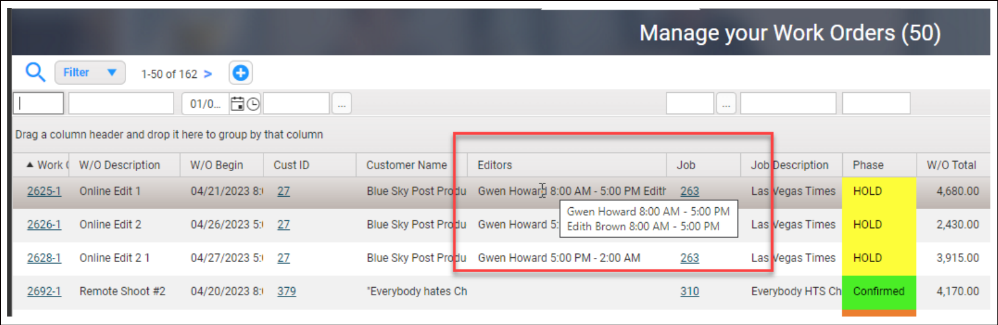

Figure 9 - Function field added to a Work Orders list display.
For Schedule Book displays, edit the Bar and Hover Layouts (from the Action Menu) for a Schedule Book.
Add the function field (by the prompt name defined when setup) and add it to the list of items. Apply & save the layout.

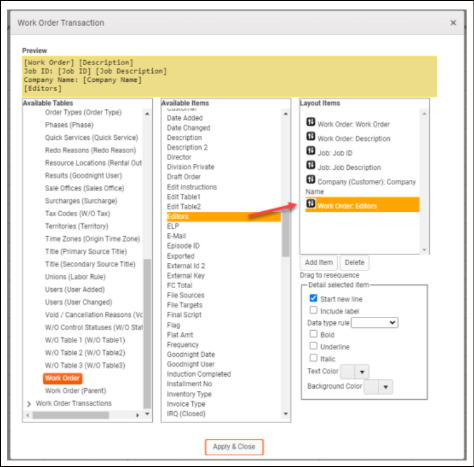

Figure 10 - Schedule Book Bar and Hover Layouts

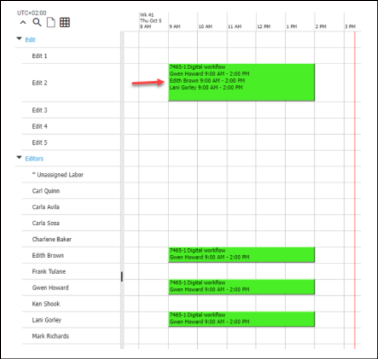

Figure 11 - Schedule Book bar displaying the function field.
